Welcome to buy CNC plasma cutting machine from Buluoer,which is one of the best cnc cutting machine manufacturers and suppliers in China.
Video of CNC plasma cutting machine:
Working principle of CNC plasma cutting machine :
CNC plasma cutting machine is a new type of thermal cutting equipment.It works based on oxygen acetylene or propane compressed gas as working gas.High temperature and high flame (or plasma arc) as a heat source ,melt the part of the cutted metal .And while blow the fused metal with a high-speed air stream, forming a narrow slit.The device is not only fast cutting speed, cutting slits narrow, smooth incision, small heat-affected zone, low degree of deformation of the workpiece, simple operation, but also has significant energy, material effects.
Plasma cutting mode of CNC cutting machine:

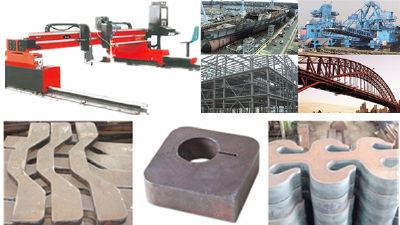

For stainless steel, aluminum, copper, cast iron, steel and other metal materials cutting.
Performance of CNC plasma cutting machine:
1.Gantry frame structure, system rigidity and high driving accuracy.
2.Bilateral drive, smooth operation.
3.Plasma dual-use CNC cutting system, easy to operate.
4.Automatic acadRcam graphical programming software, simple nesting.
Parameter of CNC plasma cutting machine:
- Size: 1
- Place of Origin: china
- Brand Name: Bloor
- Model Number: BYC
- Weight: 1.000 kg
| Project | BYC-3000 | BYC-4000 | BYC-5000 | BYC-6000 | BYC-8000 |
| gauge（mm） | 3000 | 4000 | 5000 | 6000 | 8000 |
| Effective cutting width（mm） | 2500 | 3500 | 4500 | 5500 | 7500 |
| Machine width（mm） | 3500 | 4500 | 5500 | 6500 | 8500 |
| Number of standard cutting torch（set） | 1 | 2 | 2 | 2 | 2 |
| Track length（m） | 4、6、8、10、12……Track: 2 m / section, can select optional track length | ||||
| Cutting torch travel（mm） | 200 | ||||
| Cutting thickness | Flame cutting：5 - 200 mm plasma cutting ：1 - 50 mm (according to the power) | ||||
| Cutting speed | Flame cutting ：0 - 1000 mm/min plasma cutting：0 - 5000 mm/min | ||||
| Air-way speed | 0 - 6000 mm/min | ||||
| power | AC220 V/ 380 V 50HZ | ||||
| Machine drive motor power | 800 W/ 2500W | ||||
| Cutting mode | Flame cutting：Oxygen acetylene, propane plasma torch：Compressed air, oxygen, nitrogen, etc. | ||||
| Drive mode | Bilateral drive | ||||
| system | Shanghai Jiaotong system or Beijing Si Date | ||||
| Running accuracy | ±0.2mm/m | ||||
